CNB 76

Builder: CNB/Construction Navale Bordeaux

Designer: Philippe Briand

Flag of Registry: Germany

LOA: 23.17 m

Beam: 6.10 m

LWL: 21.98 m

Minimum Draft: 3.0 m

Maximum Draft: 3.0 m

Dry Weight: 50000 kgs

Accommodation:

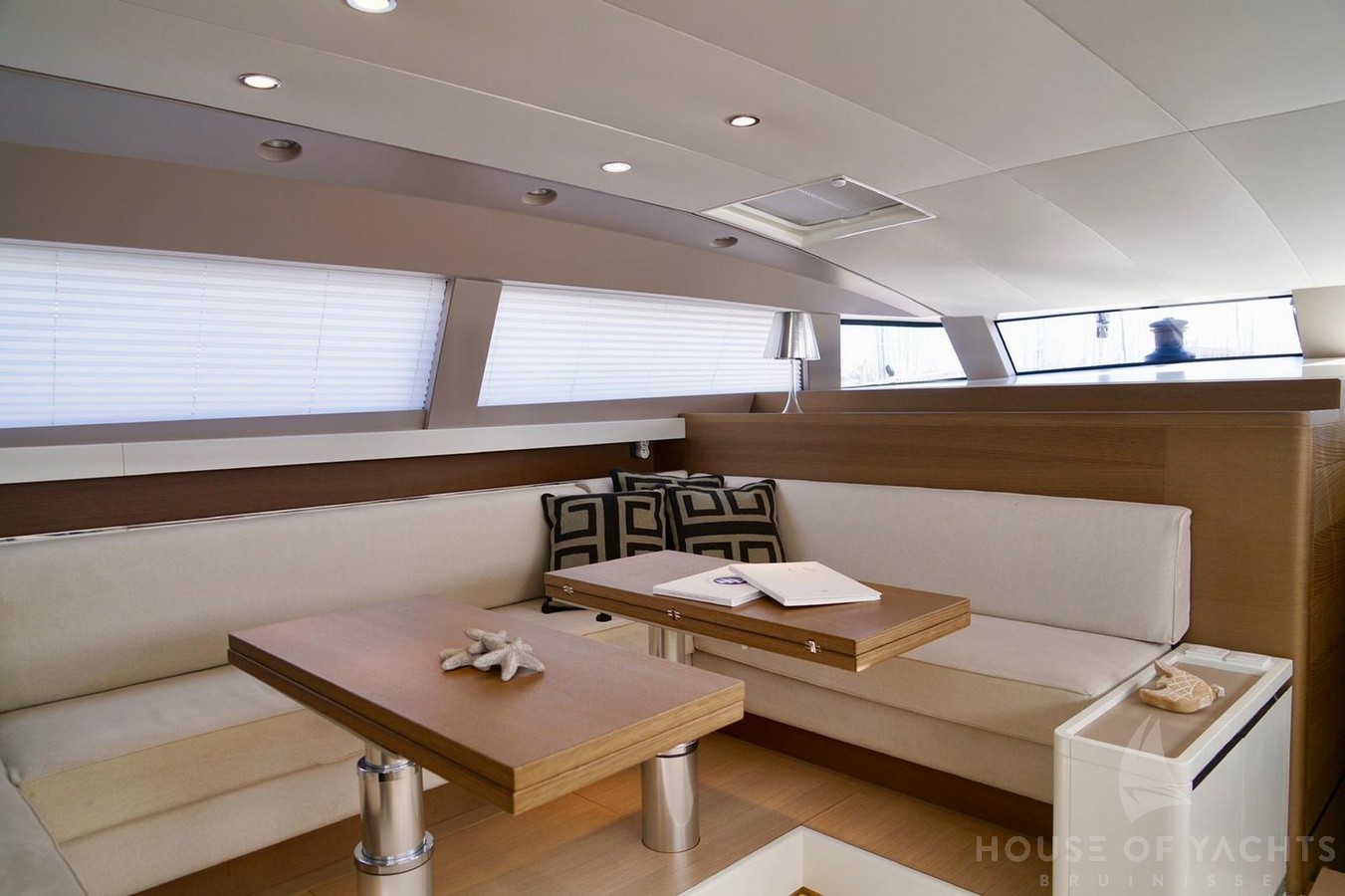

Bright and spacious decksaloon with raised salon floor, panoramic coachhouse windows, large hull windows and deck hatches

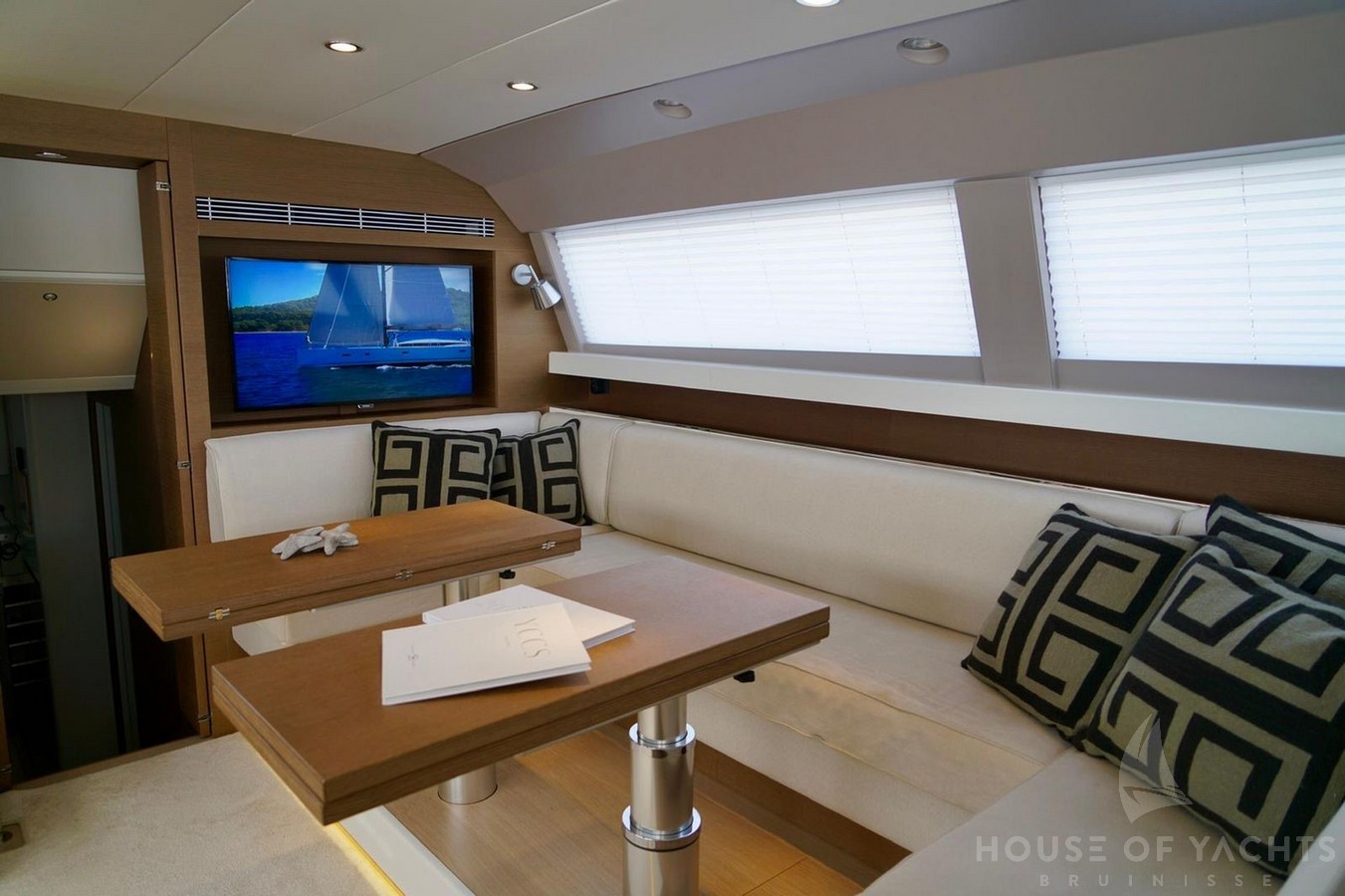

U-shaped dinette on electric lowering saloon table for 8 persons to port

Comfortable lounge to starboard with bar incl. icemaker and longitudinal sofa which converts into two armchairs

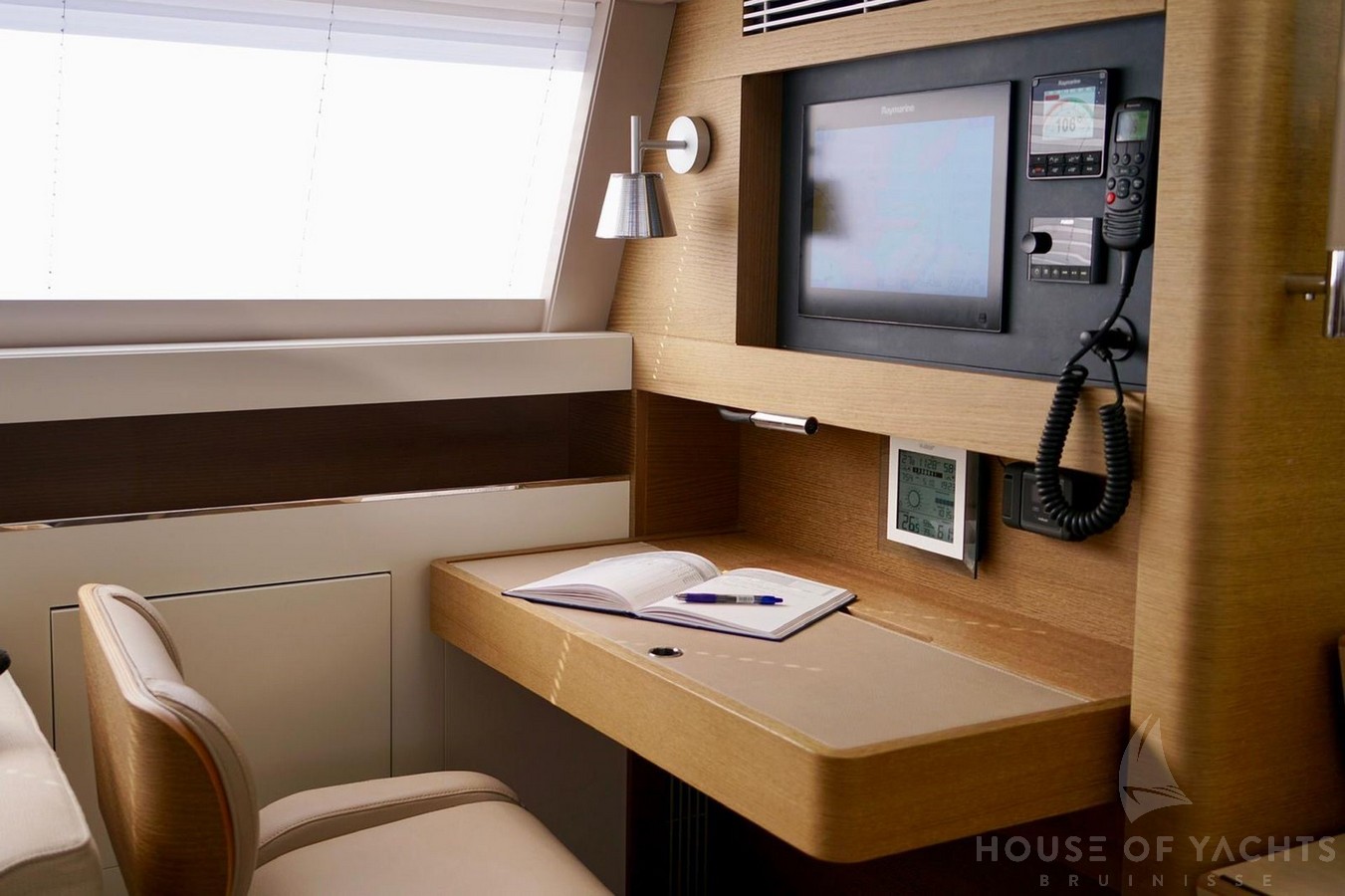

Chart table with navigator seat to starboard aft

Large, functional U-shaped galley to starboard aft with direct access to cockpit with work surface including counter in white CORIAN

- Double sink

- MIELE oven

- Extractor hood

- MIELE refrigerator 231 l

- MIELE freezer 104 l

- MIELE dishwasher

- Wine cooler cabinet

- Gimballed electric MIELE induction stove with four burners

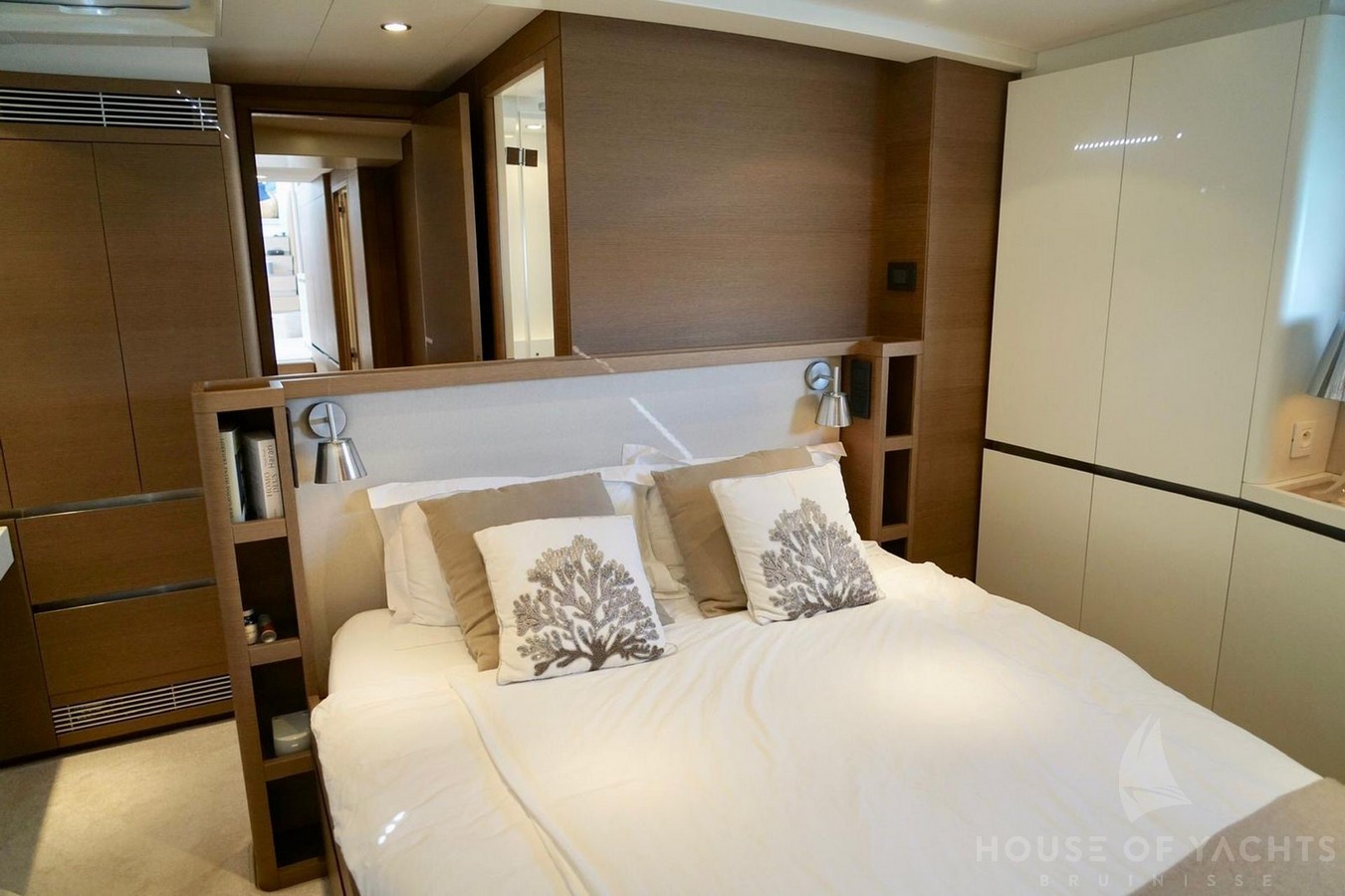

Luxurious owner's cabin forward with queensize island double berth, vanity table and ample storage space in lockers, drawers and compartments

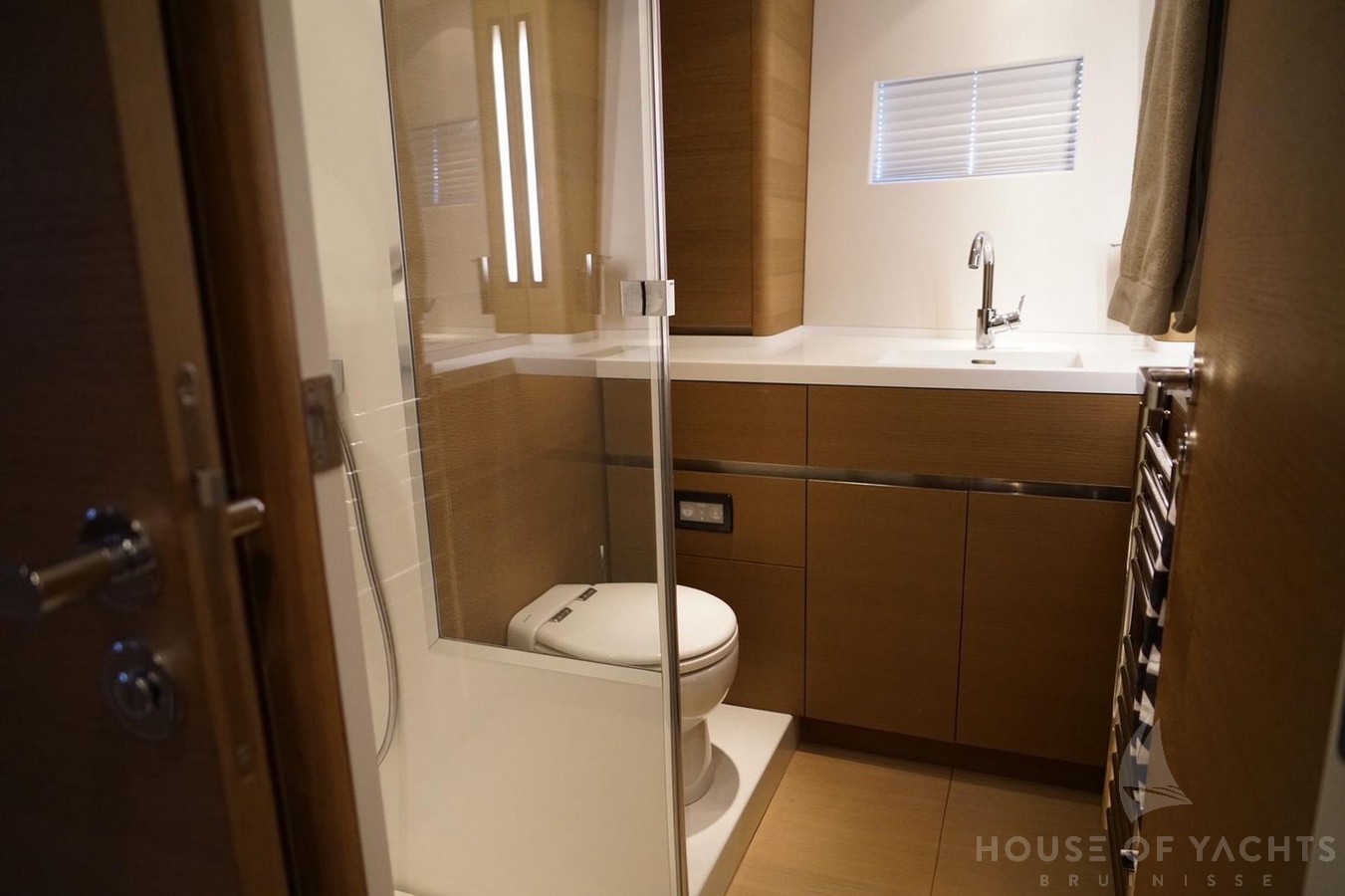

Owners heads with separate shower stall, towel dryer and electric toilet TECMA

VIP-guest cabin to port with wide double berth (can be converted to single berths), locker and en-suite heads compartment with separate shower stall, towel dryer and electric toilet TECMA

Starboard lateral cabin with bunk beds (the lower bed can be converted to double berth), locker and heads compartment with electric toilet TECMA

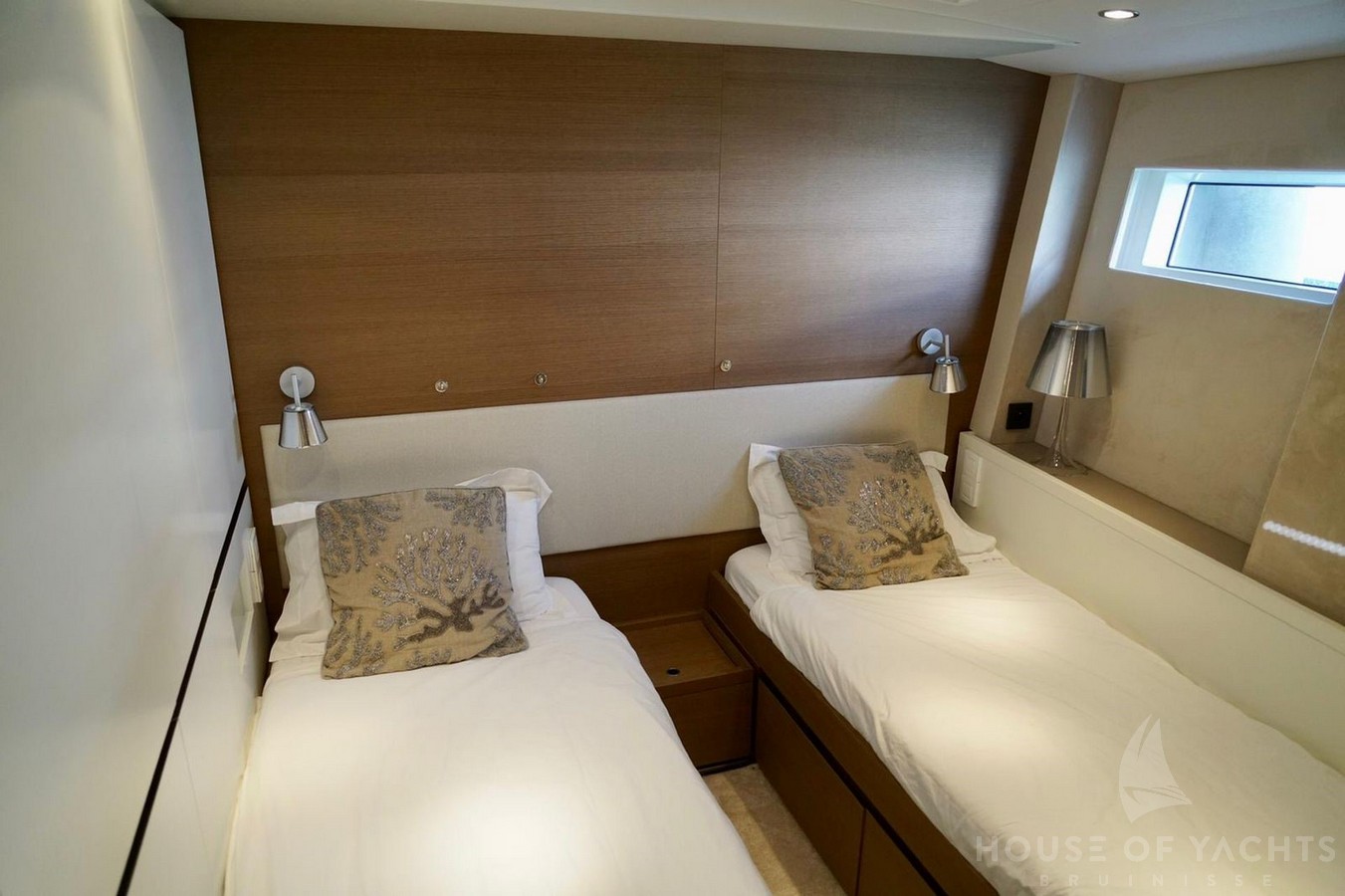

Aft cabin with two single berths, wardrobe and en-suite heads compartment with separate shower stall and electric toilet TECMA

sail locker in forepeak fitted out as crew cabin with two bunk beds, locker, electric toilet TECMA, shower and sink

Carpet in salon and owner's cabin

lee sails in both center cabins

OCEAN AIR blinds and mosquito screens in deck hatches and blinds for hull windows
Number of single berths: 2

Number of twin berths: 2

Number of double berths: 2

Number of cabins: 4

Number of heads: 5

Number of bathrooms: 4

Motor & Electric:
VOLVO PENTA D4-180 4 cylinder commonrail turbodiesel 180 hp/132 KW

Shaft drive with 4 bladed feathering propeller VARIOFOLD

Line cutter on propeller shaft

EVC system with electronic throttles on both helm station

Retractable bow thruster SIDEPOWER with separate battery

Retractable stern thruster SIDEPOWER with separate battery

Gel service battery bank 24 V/840 Ah

Starter battery 12 V

230 V shore power connection with 230 V sockets throughout the ship

2 x battery charger 24 V/100 A

Inverter 24 V/230 V/5.000 W
Shore power inlet

Generator

Inverter

Electrical Circuit: 220V
Fresh Water Tanks: (1500 Litres)

Fuel Tanks: (2500 Litres)

Holding Tanks: (200 Litres)

Rigging:
Deck stepped, 9/10 fractional, black painted furling mast

Three sets of aft-swept spreaders

Hydraulic mainsail furler and hydraulic outhaul

Standing rigring in rod

Carbon Park Avenue-boom by HALL-Spars

Hydraulic RECKMANN genoa furler

Fixed cutter stay with hydraulic RECKMANN furling system

Central electro-hydraulic panel for backstay, vang and halyard tensioners

Additional checkstays

Integrated traveller trakck for self-tacking jib

Furling mainsail INCIDENCES DFi approx. 145 m² with continuous, vertical battens

Furling genoa INCIDENCES DFi approx. 146 m² with UV-protection

Self-tacking jib for cutter stay INCIDENCES DFi approx 77 m² with UV-protection

Gennaker INCIDENCES Maxilite 1.5 oz approx. 490 m² (color: white) in snuffer

Code-3 INCIDENCES D4 Premium Membrane

Hydraulic furling system for code-sails

Gennaker deck gear incl. gennaker halyard and 2:1 halyard for code-sails
Sails

Furling mainsail

Furling genoa

Gennaker/Cruising spinnaker

Asymmetric spinnaker
Steering wheel

Electric winch

Depthsounder

Log-speedometer

Wind speed and direction

Plotter

Autopilot

Compass

GPS

VHF

Radar

TV set

Stern thruster

Bow thruster

Electric bilge pump

Manual bilge pump

Battery charger

Air conditioning

Hot water

Fresh water maker

Sea water pump

Dishwasher

Washing machine

Oven

Microwave oven

Electric head

Refrigerator

Deep freezer
